Pile Jacketing & Jetty Refurbishment Works
Shell Timur Labuan 2016
Project Name : Structure Repair and Maintenance Works to Jetty at Labuan
Client : Shell Timur Sdn Bhd
Date Commence : 18 July 2016 - 28 Feburary 2017
Contract Amount : 2,868,154.00
SHELL briefing on finding and recommendation
Fall to sea drill done at site

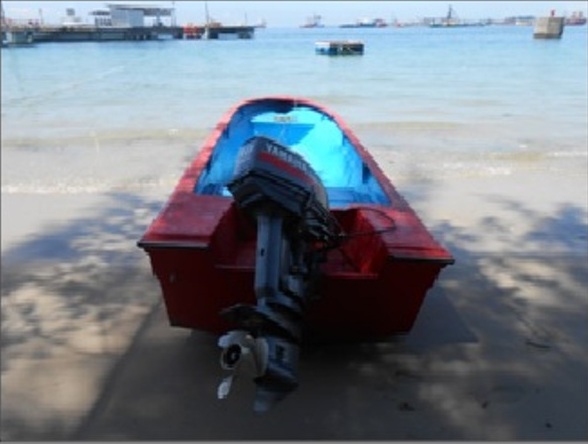

Standby boat with engine 30hp available during wor...

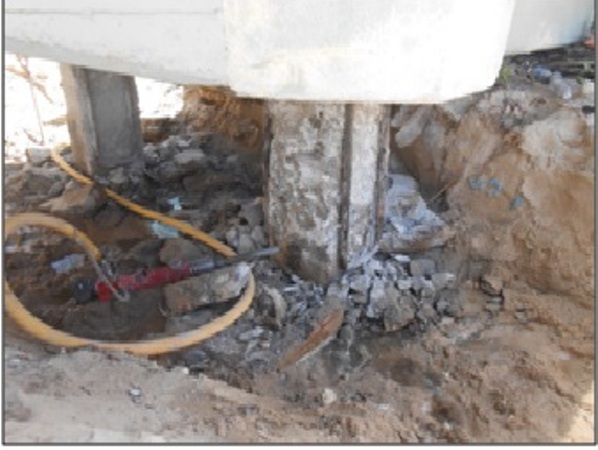

Expose pile at pile repair area using hacking brea...

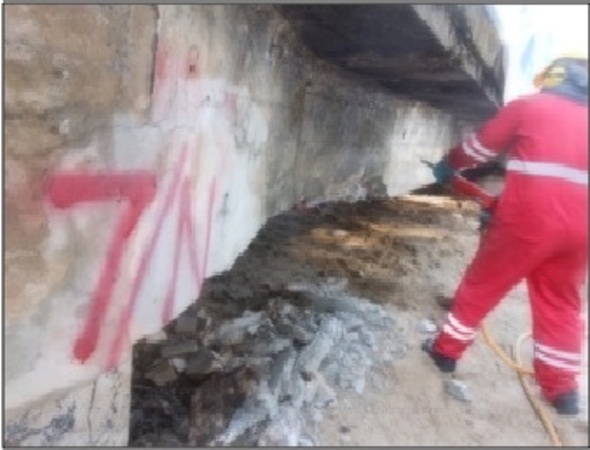

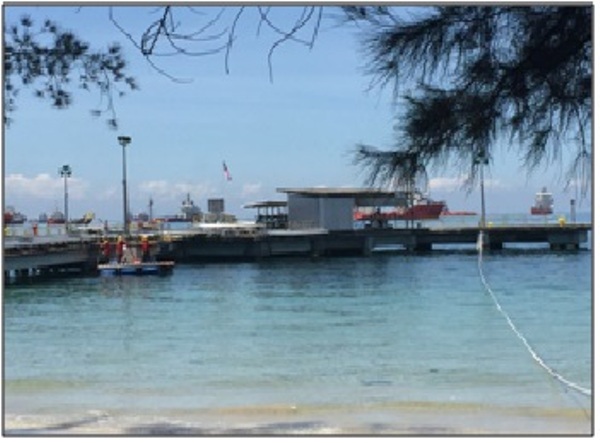

Preparation works for installation working platfor...- Hacking to beam at shore beam repair
Installation of line yard for pontoon transporter

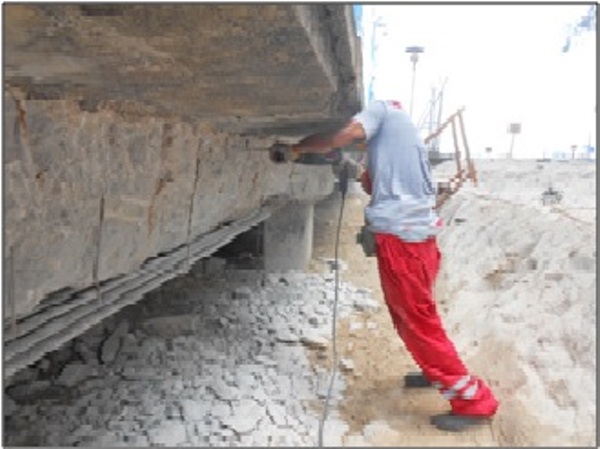

Hacking to beam- Drill for starter bars

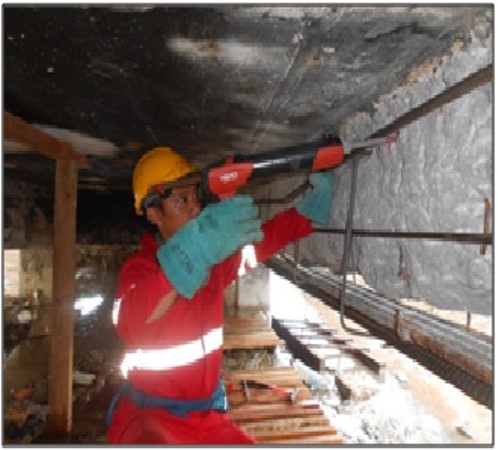

Install starter bars using Hilti RE 500

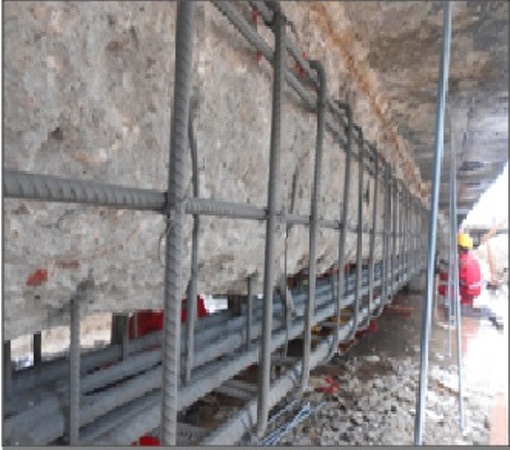

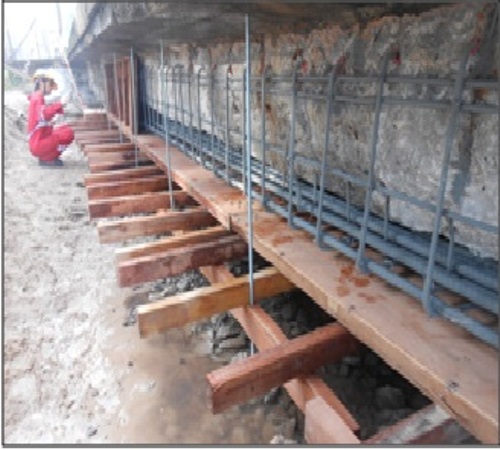

Rebar preparation works- Preparation for installation formworks

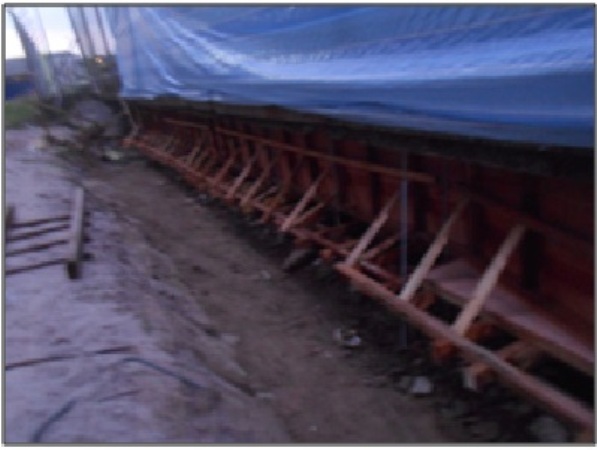

- Formwork preparation before gouting works

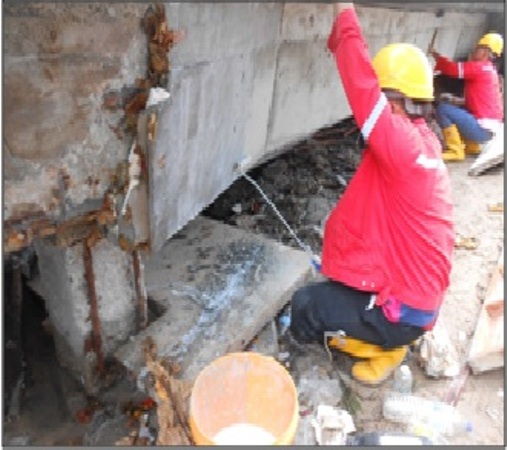

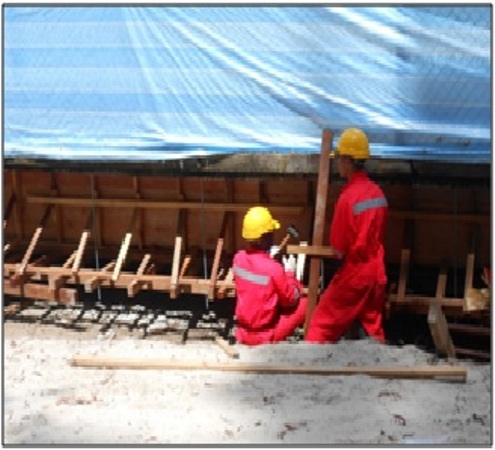

Grouting works on beam- Dismantle formworks and apply curing compound

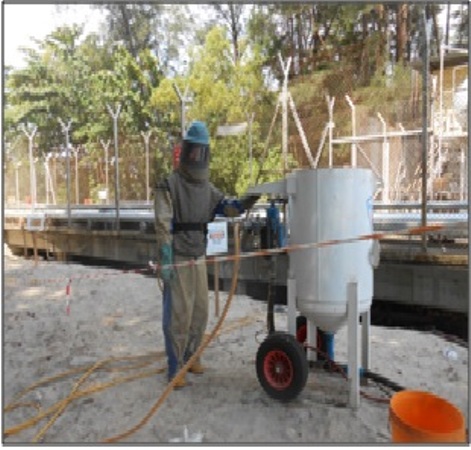

- Preparation for blasting to steel rebar

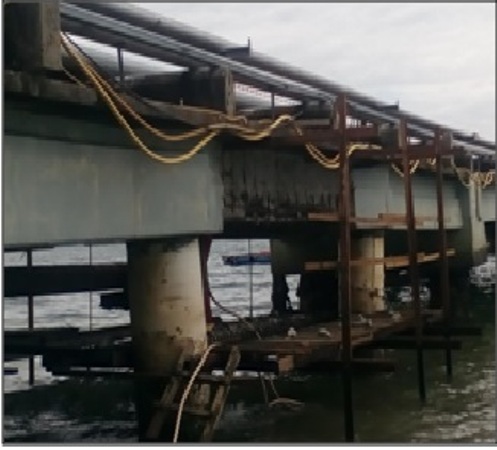

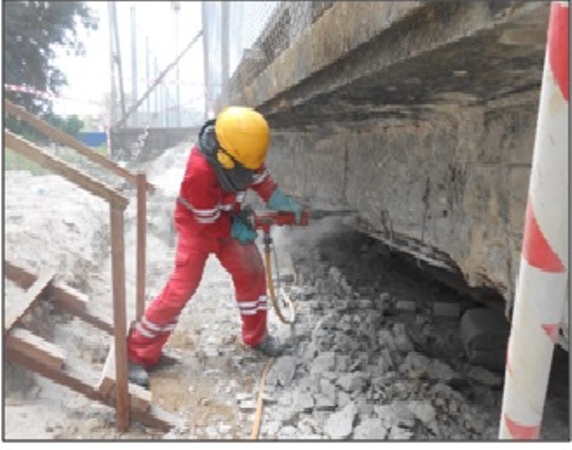

- Hacking to beam

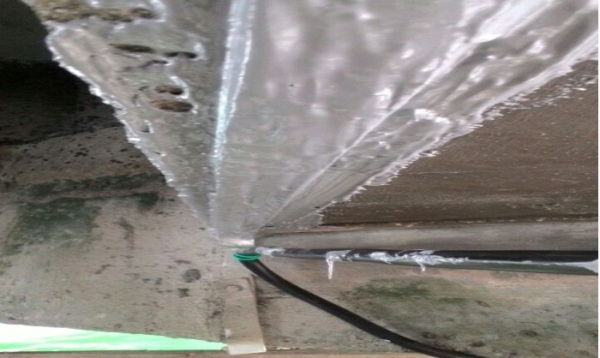

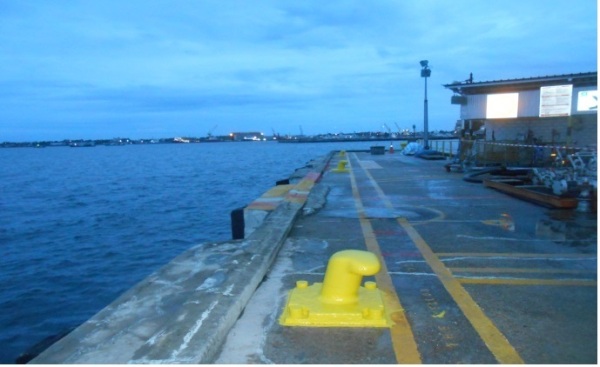

Apply epoxy after fixing conductor for CP works- Blast and applied protective coating on bollard

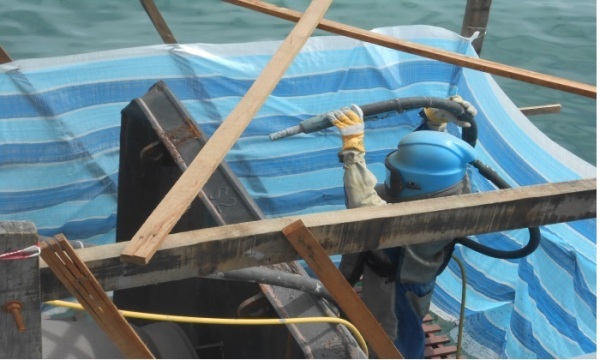

Blast work for fender panel

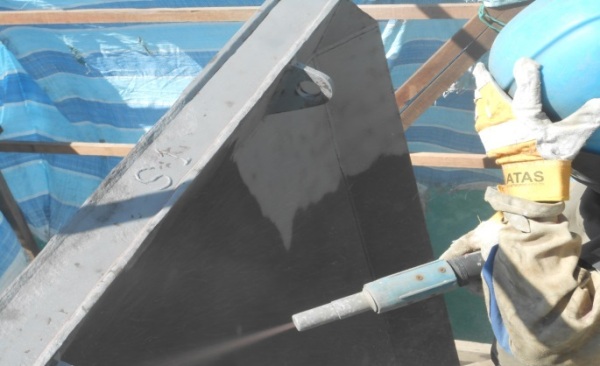

Blasting works on fender

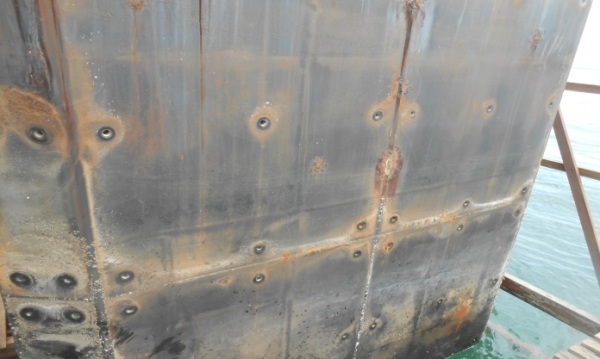

Condition of fender after removal of UHMW-PE pad

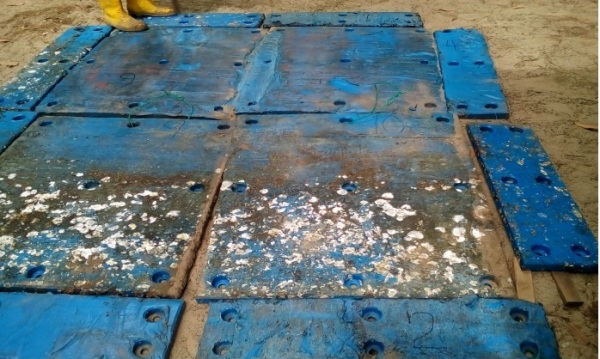

Condition of UHMW-PE pad after removal

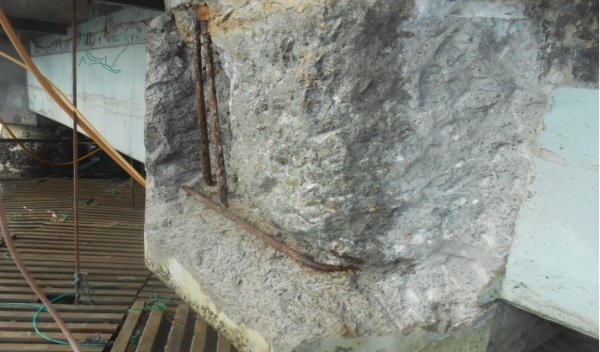

Condition of pile cap after hacking

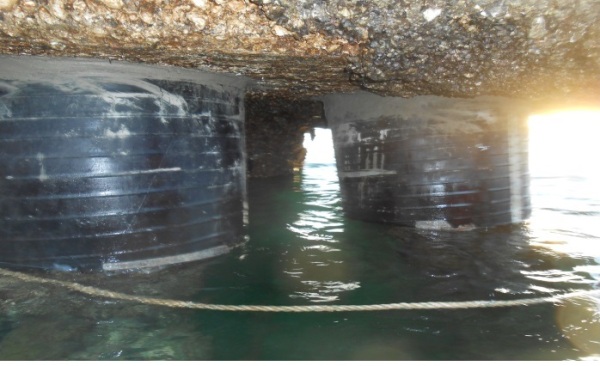

Finish pile jacketing for Mooring Dolphin 2

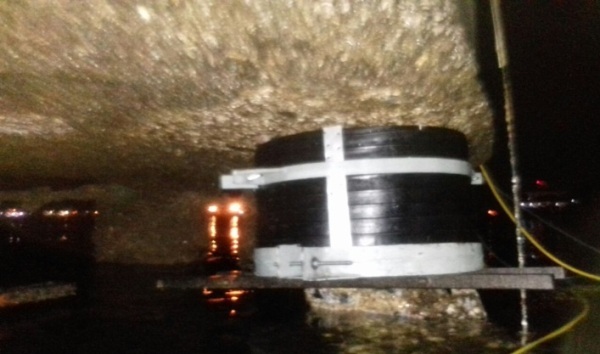

Green tag added for temporary walking platform- Installation of HDPE pipe on Mooring Dolphin 3

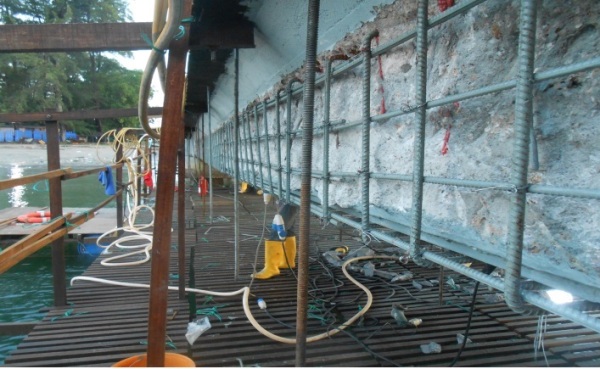

- Installation of steel rebar for beam

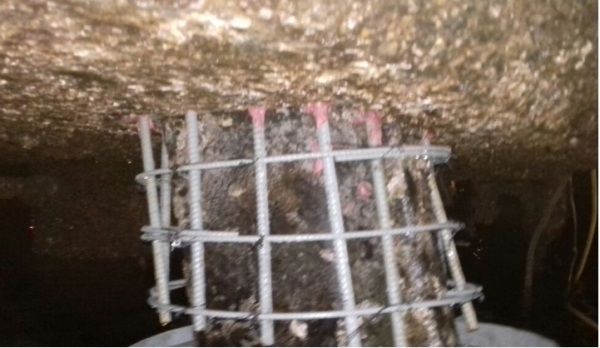

Installation of steel rebar for pile jacket

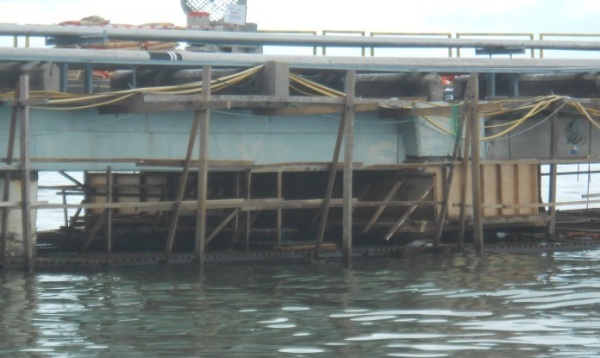

Installation of steel rebar slab

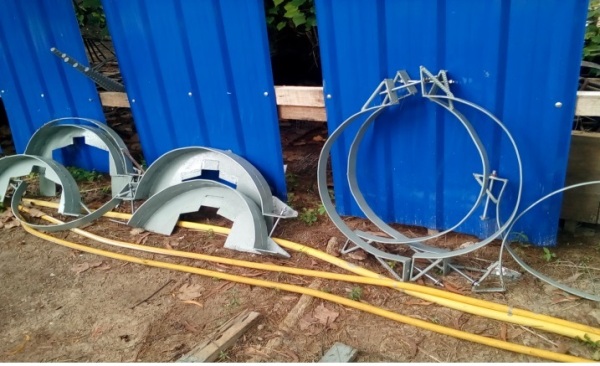

Preparations for pile jacketing on

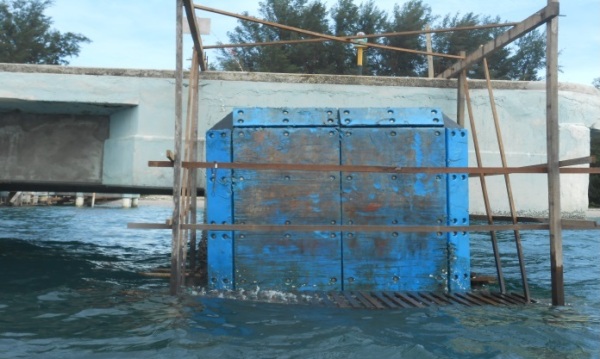

Reinstatement of UHMW-PE pad

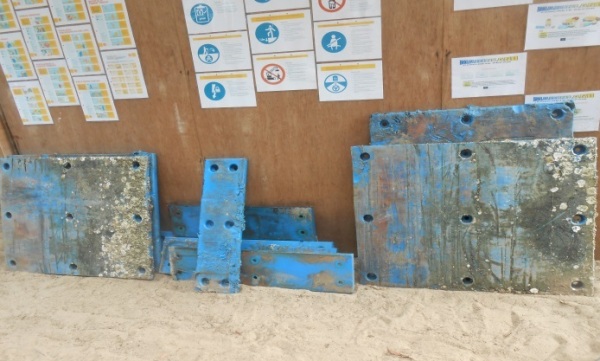

Removal of UHMW-PE pad for fender
